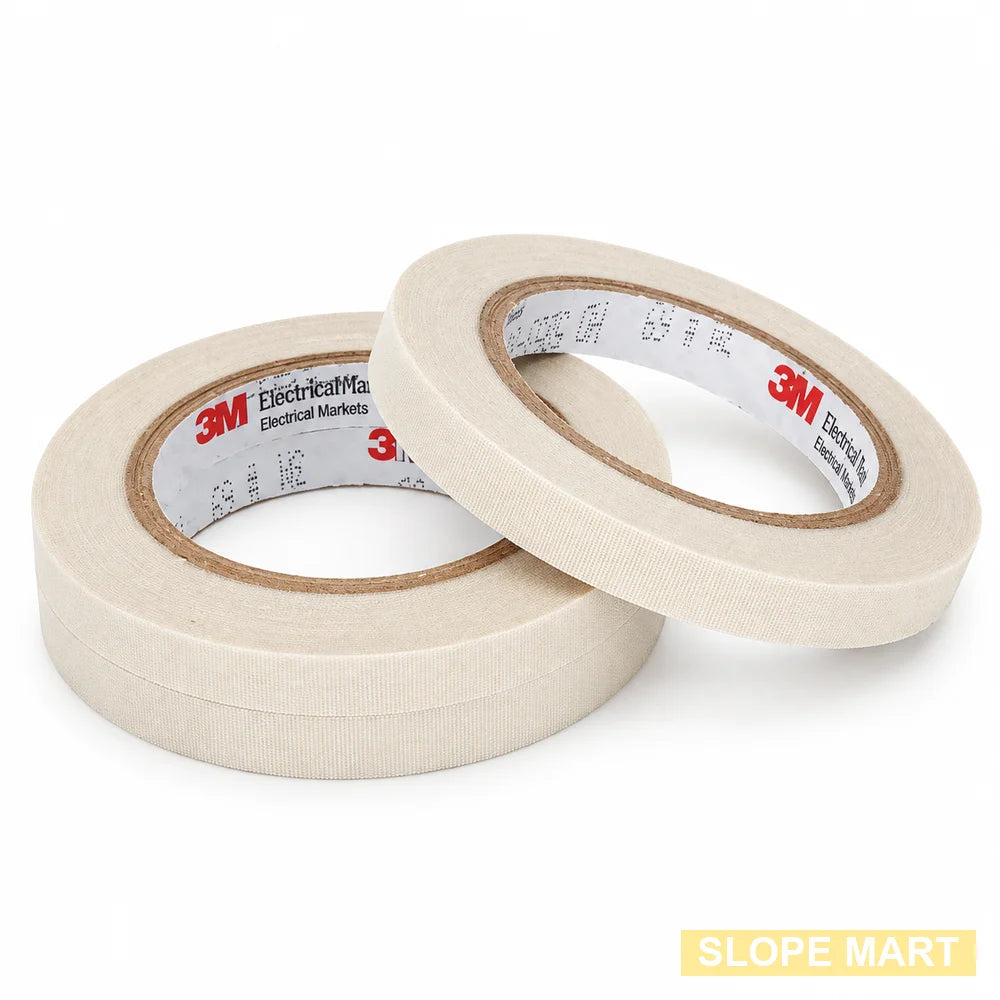

3M Glass Cloth Electrical Tape 69 with Silicone Adhesive
3M Glass Cloth Electrical Tape 69 with Silicone Adhesive
Regular price
€4,95 EUR
Regular price
Sale price
€4,95 EUR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Insulate and protect high-temperature electrical equipment with 3M™ Glass Cloth Electrical Tape 69. Featuring a rugged glass cloth backing and a thermosetting silicone adhesive, this 7-mil premium tape delivers exceptional mechanical strength, edge-tear resistance, and flame-retardant thermal stability up to 200°C (392°F).
Pros
- Extreme Thermal Resistance: UL Recognized for continuous operation up to 200°C (392°F) and CSA certified up to 180°C (356°F), preventing degradation in severe industrial environments.
- Thermosetting Silicone Adhesive: Formulated with a non-corrosive, pressure-sensitive silicone adhesive that increases bond strength and solvent resistance when exposed to elevated temperatures.
- High-Tear Mechanical Strength: Heavy-duty woven glass cloth backing offers outstanding puncture resistance and mechanical protection for coil banding, transformer insulation, and motor leads.
Specifications
| Brand | 3M™ |
| Product Model | Glass Cloth Electrical Tape 69 |
| Backing Material | Woven Glass Cloth |
| Adhesive Type | Silicone |
| Total Thickness | 7 mils / 0.178 mm |
| Backing Thickness | 5.5 mils / 0.140 mm |
| Temperature Rating | 200°C / 392°F (UL) | 180°C / 356°F (CSA) |
| Voltage Rating | 600V (Dry applications) |
| Certifications & Standards | UL Recognized, CSA Certified, RoHS Compliant, QPL-19166 (MIL-I-19166) |
| Flame Retardancy | Passes Flame Retardant Requirements |
